Contributor

As a contributor, you are responsible for developing tools and workflows, as well as analyzing data within the platform.

After signing in to the RIVER platform using Google OAuth2, request Contributor access for your project. The project administrator will grant access using your Gmail address. Once approved, you can begin working as a Contributor.

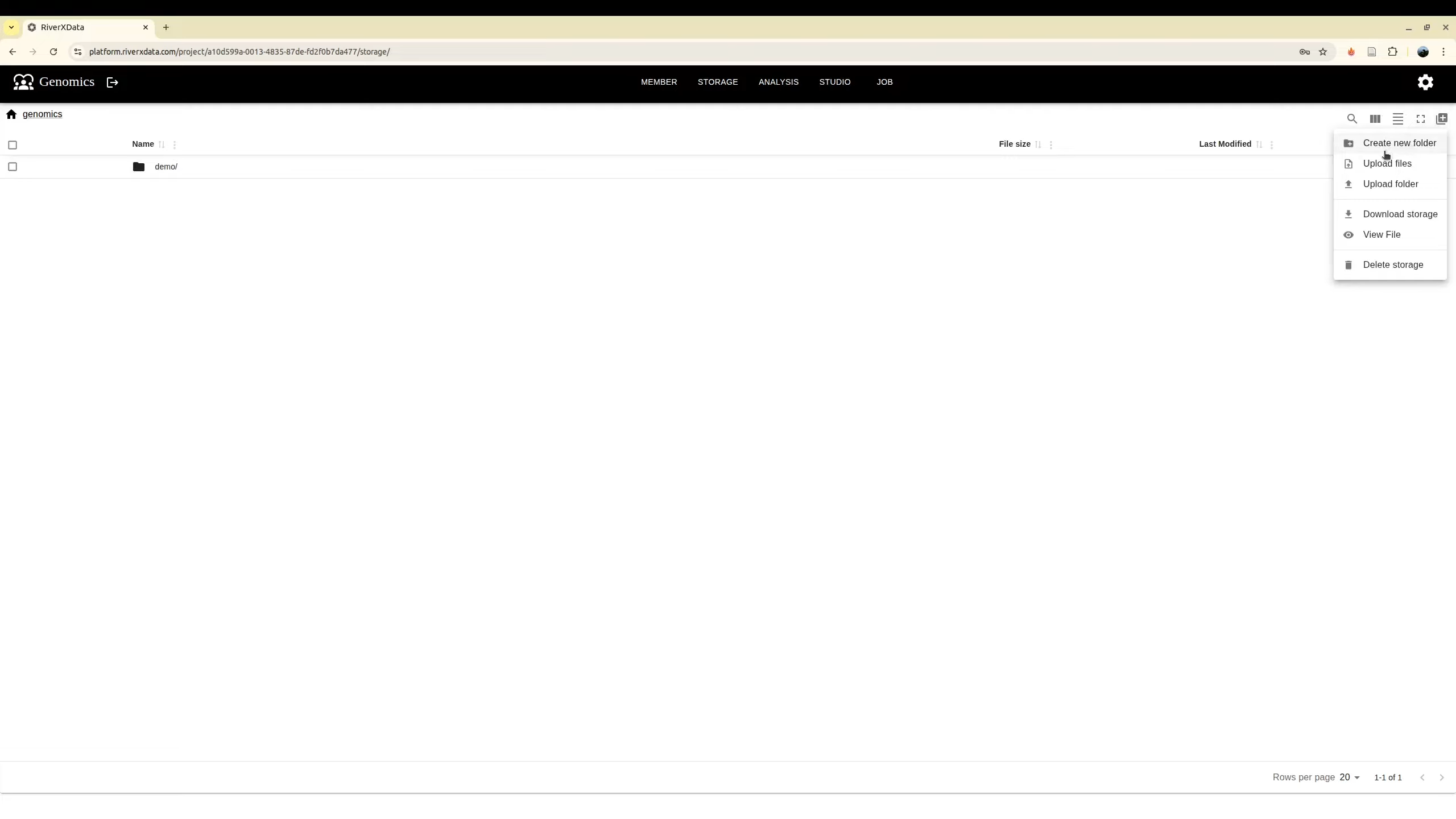

Storage​

Right after you join the project, the storage is similar to Google Drive where you can work with files/folders. Currently, we supports:

  • Create folders
  • Upload files
  • Upload folders
  • Download file
  • View file content supports for text, image and html file format
  • Delete file/folder
warning

S3 is not well supported for renaming files. S3 file path is just the key of the object. We may support it in the future. Currently, to rename, user need to download storage, upload to new destination and new folder name. Delete the old folder if needed

Storage option

Contributor

tip

It is useful that you do not need to download but you can view directly on the browser. For example, here, it allows user to view the MultiQC report running by a nextflow run

Multiqc

Credential​

As contributor you need to add the tools with Github configuration for tools and HPC SSH configuration for computing resource.

Adding Tools​

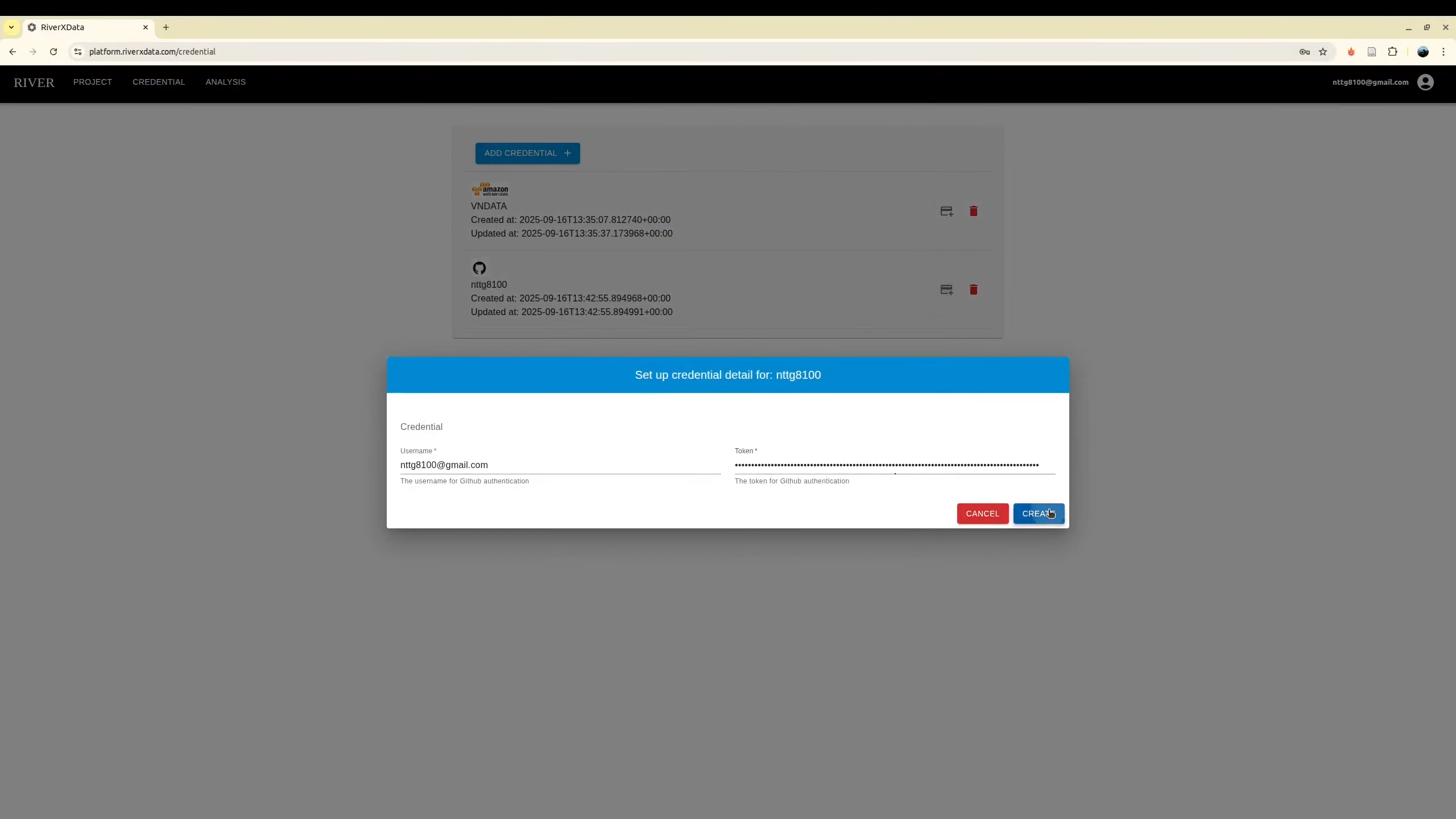

To generate a GitHub personal access token, please refer to the official documentation: https://docs.github.com/en/authentication/keeping-your-account-and-data-secure/managing-your-personal-access-tokens

New GH credential

Contributors can add tools through the analysis panel after authentication. In addition to specifying the GitHub repository, two configuration options are available:

  • Allow access: Determines whether the tool runs as a web application
  • Has base URL: Enables Traefik integration for reverse proxy configuration via remote tunnel. Note that not all tools support straightforward configuration; some require custom base_url settings for API and WebSocket connections.

As a contributor, you typically only need to select and execute tools, as these options are generally defined by the Developer role. For detailed information on tool implementation and configuration, please refer to the Developer documentation.

Create analysis

Adding HPC​

Usually, if you are working for the remote HPC

The tools need to run on your HPC where you have an account to login via SSH. First, you need to create an SSH key pair for secure authentication.

Creating an SSH Key Pair​

  1. Open a terminal on your local machine
  2. Generate a new SSH key pair using the following command:
    ssh-keygen -t ed25519 -C "your_email@example.com"
    Alternatively, if your system doesn't support Ed25519, use RSA:
    ssh-keygen -t rsa -b 4096 -C "your_email@example.com"
  3. When prompted, specify a file location or press Enter to accept the default (~/.ssh/id_ed25519 or ~/.ssh/id_rsa)
  4. Enter a secure passphrase when prompted (optional but recommended)

Adding the Public Key to Your HPC​

  1. Copy your public key to the HPC server:
    ssh-copy-id username@hpc-hostname
    Or manually copy the contents of ~/.ssh/id_ed25519.pub (or ~/.ssh/id_rsa.pub) to ~/.ssh/authorized_keys on the HPC

Testing Your SSH Connection​

Verify that you can login to your HPC without password authentication:

ssh username@hpc-hostname

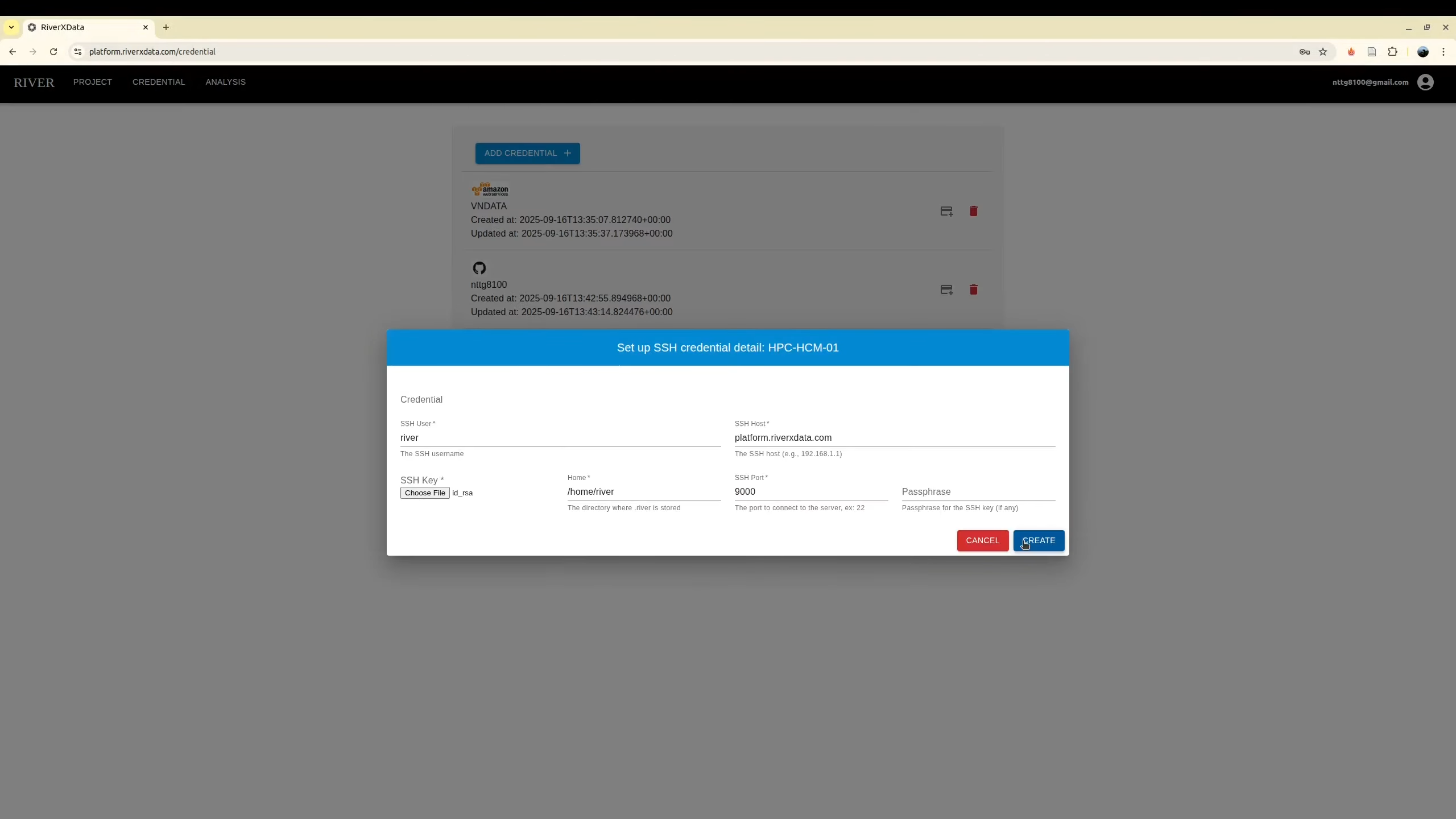

If the connection is successful, you're ready to configure your HPC. Now use it to configure the new SSH credential with SLURM HPC New ssh

Running Tools​

On the Analysis panel on the project, now you can start to running the tools, RIVER will use your github credential to read the contents of the remote repository, allows it to run correctly. We encourage that the the Developer should public their tools with community to run on

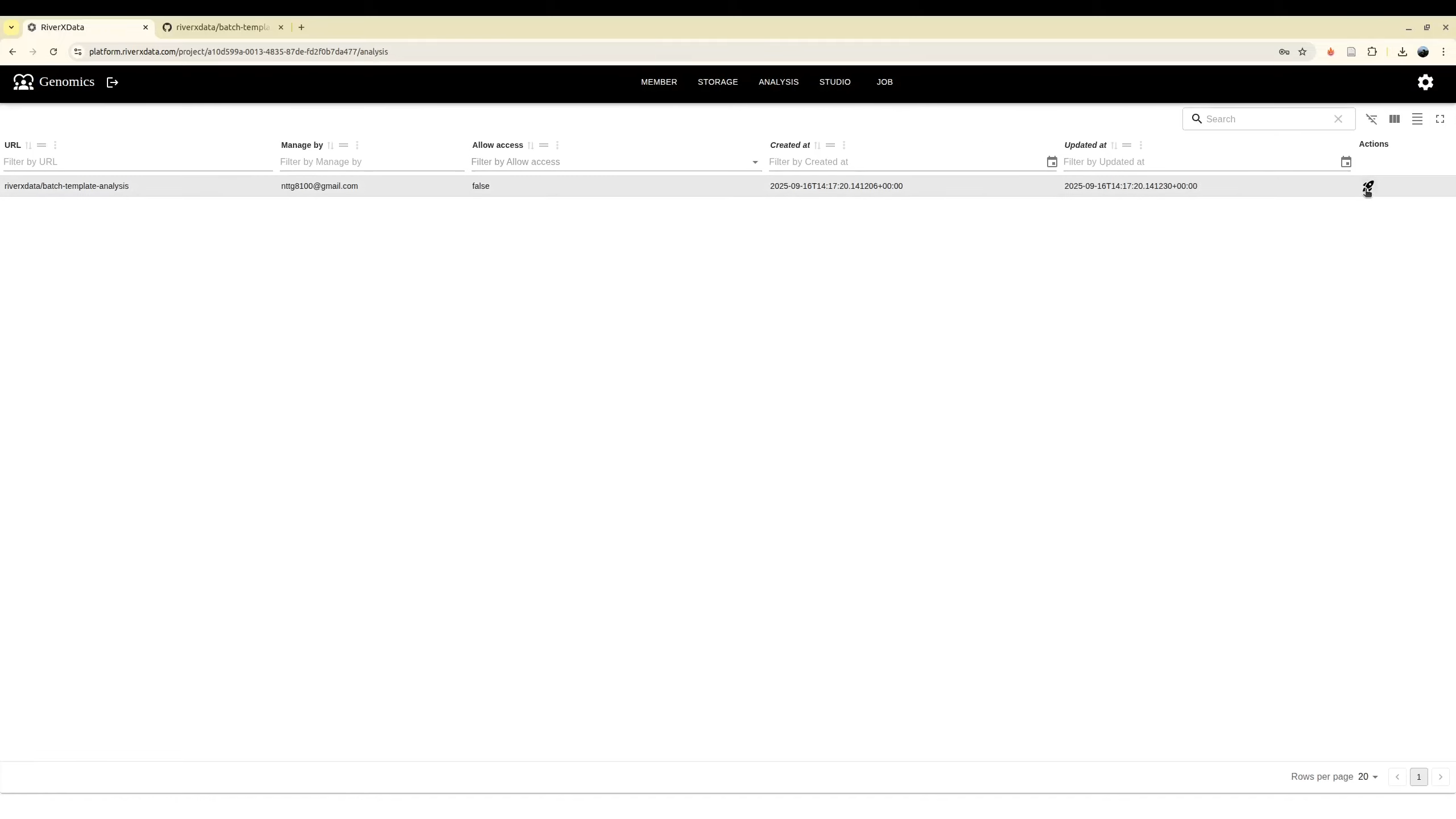

Select tool​

Select tool to run on the panel Analysis

New tool

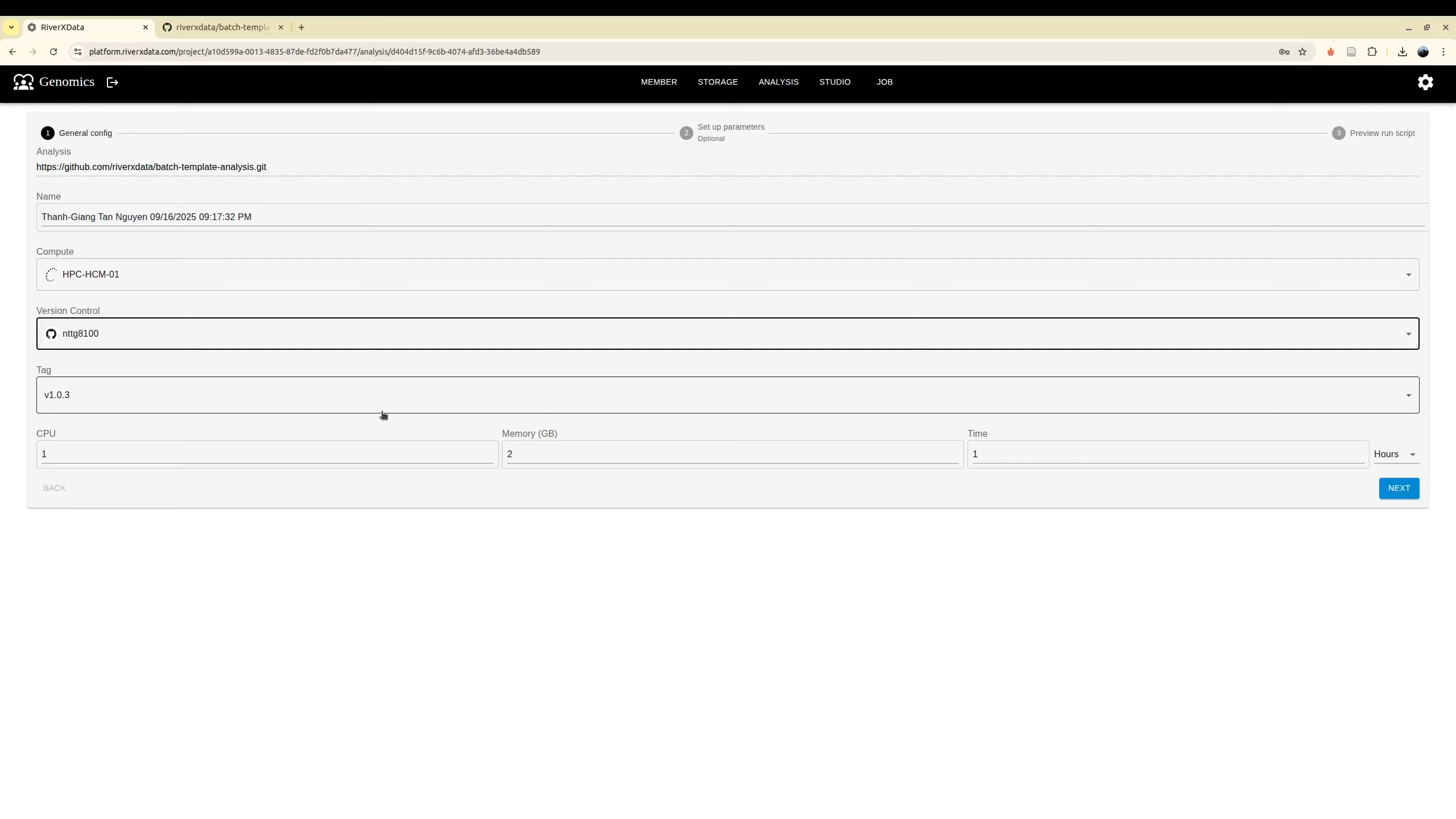

Specify resources and run tool​

tip

For the job like workflows, it will trigger to submit more job automatically, you do not need to add too many resources

Select the HPC to run the tool. A contributor may have more than one HPC credential. As a result, it need to be selected. Beside, user need to specify the computing resource for job via cpus, memory and running time. While tag is retrieved from repository to ensure that you can run with your expected version. For the job with nextflow, it is for the running job only instead of the whole computing jobs.

Running tool

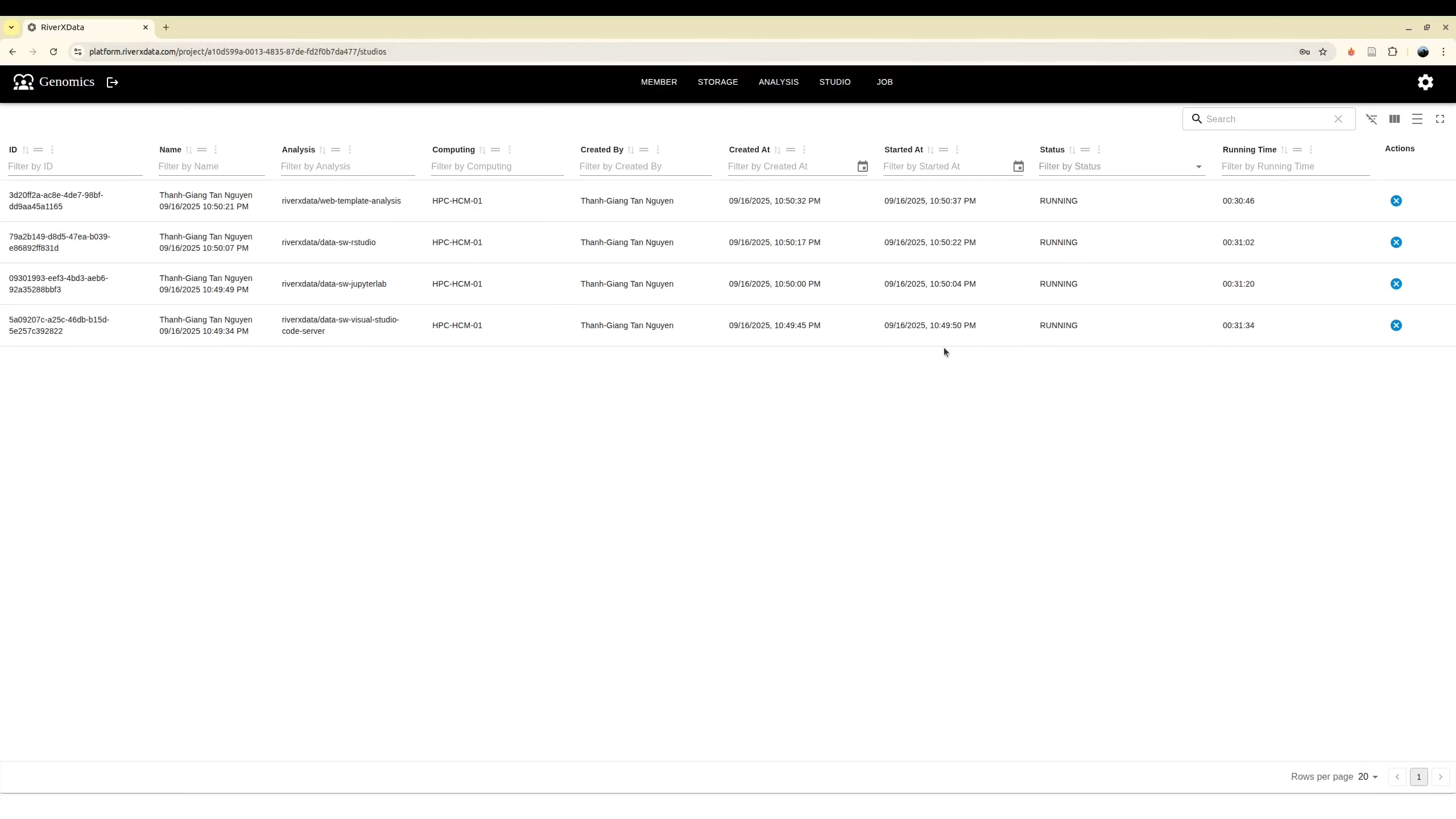

Monitor job status​

Next, if your job is web application, you can move to the Studio for monitoring them. You may need to terminate them if you complete your analyze sooner than you configuration job. In addition, if you run the analysis which is not the web application, you can monitor them at Job. You can terminate it before it is completed.

Monitor job

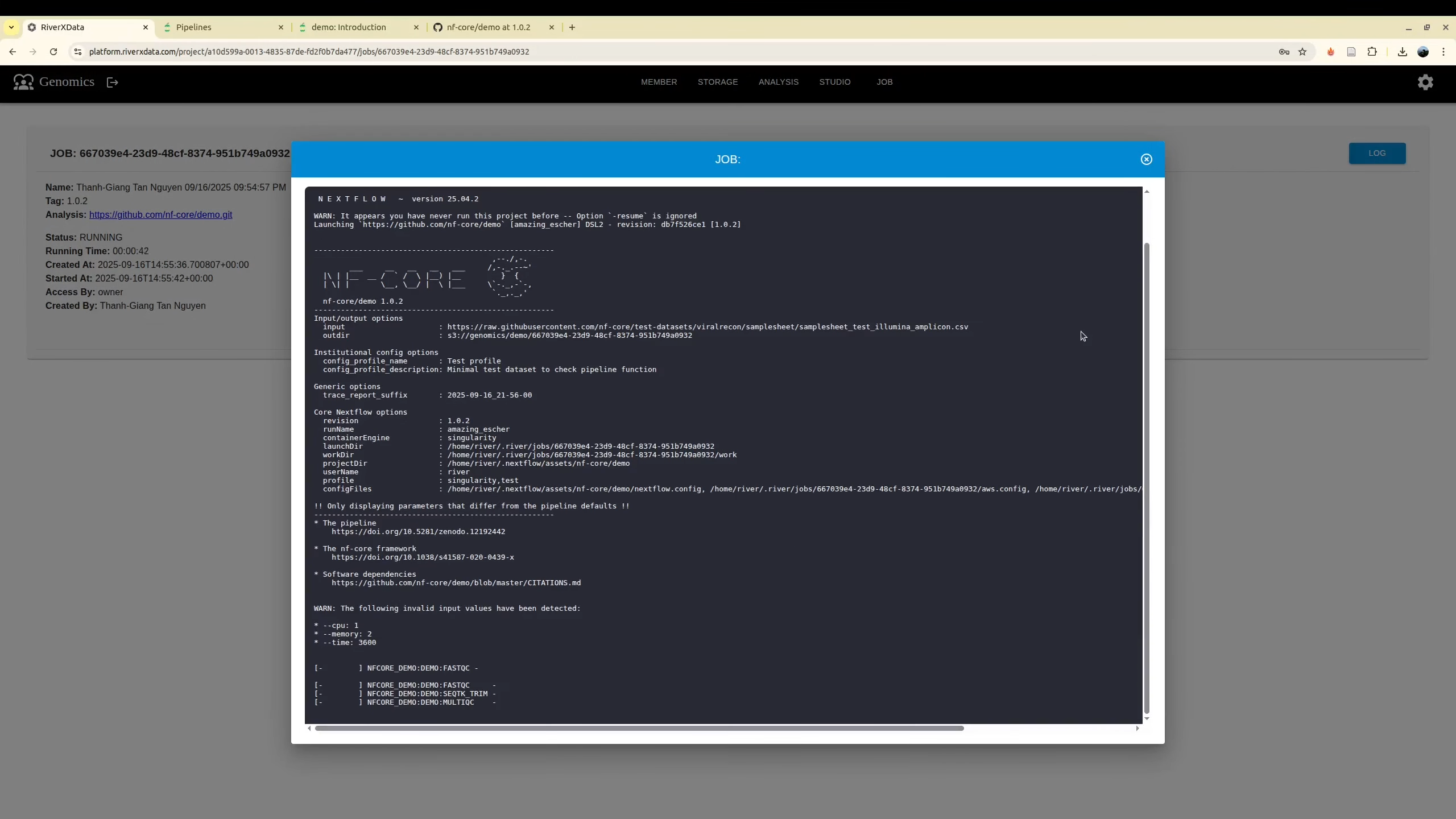

Log job​

tip

For the web application, especially for the first run on your HPC, it may requires extra time to download the database from remote server. As a result it you can use the log monitoring for checking when the web application is ready to access

Beside, when it is running you can observe the log to see what it is running. It is helpful for monitoring and debugging jobs Log job
